Convert AutoCAD DWG to TIFF

Saving AutoCAD drawings as TIFF files is easy if Universal Document Converter is installed on your computer.

Step 1: Open the drawing in AutoCAD and click Plot

Step 2: Change What to plot option to Extents. Check Center the plot and Fit to paper features.

Step 3: Select Universal Document Converter from the list and click Properties…

Step 4: Click Custom Properties…

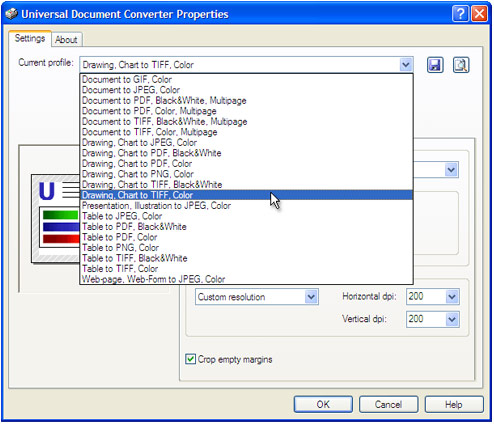

Step 5: Change TIFF Image and click OK. Plot AutoCAD drawing to TIFF!

• 1
• 2
• 3
• 4
• 5

To keep the project details all in one place it may be useful to combine them into a single file and take control of all its details.

1. Open the drawing and click Plot
2. Select Universal Document Converter from the list of plotters and click Properties
3. Select Custom Properties on the Device and Document Settings tab and click Custom Properties button in the Access Custom Dialog area
4. Change the size of the page according to your preferences in the Universal Document Converter settings panel
5. Change the destination file format to the TIFF Image
6. Select Append all documents to the existing file feature like shown on the screenshot below

After this all the drawings you intend to virtually print will be appended to the TIFF file you selected in the Output location area.

By watermarking your drawings you will be able to protect your copyright, which is of vital importance when it’s your intellectual property.

1. Open the drawing and click Plot
2. Select Universal Document Converter from the list of plotters and click Properties
3. Select Custom Properties on the Device and Document Settings tab and click Custom Properties button in the Access Custom Dialog area
4. On the Universal Document Converter settings panel go to the Watermark area. Select the type of the watermark you would like to use.

To convert several drawings saved as AutoCAD DWG files into TIFF images, i.e. to provide opportunities for batch converting AutoCAD DWG to TIFF, use Print Conductor that is available together with the Universal Document Converter.

1. Add the drawings you would like to convert to the list of files to be converted
2. Select Universal Document Converter printer
3. Click Change Settings to set the destination folder and TIFF Image as an output file format
4. Click Start to begin converting drawings and charts to TIFF.

Universal Document Converter offers some useful resources available for software developers. Introducing the features existing within Universal Document Converter is possible by means of public API and code examples available for different programming languages.

With the help of the “conversion kernel” it becomes possible to utilize the existing features of the Universal Document Converter in similar conversion projects.
